16G4 Horizontal Directional Drilling Machine
ZT-16G4

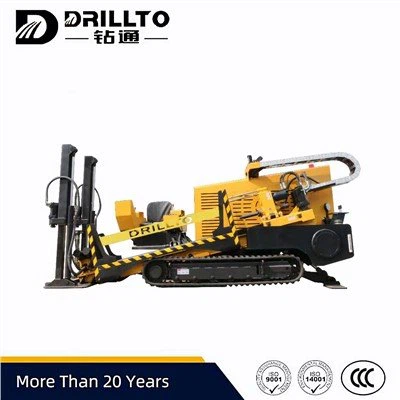

The ZT-16G4 is a trenchless horizontal directional drilling rig with a tracked chassis and a fully hydraulic drive system. It is suitable for trenchless crossing construction in the laying of natural gas pipelines, water supply pipelines, power and communication lines, etc.
- Product Introduction
Drillto Trenchless Co., Ltd is one of the most reliable manufacturers and suppliers of 16g4 horizontal directional drilling machine in China, featured by quality products and good price. Please rest assured to buy 16g4 horizontal directional drilling machine for sale here from our factory. Contact us for custom service.
The ZT-16G4 is a trenchless horizontal directional drilling rig with a tracked chassis and a fully hydraulic drive system. It is suitable for trenchless crossing construction in the laying of natural gas pipelines, water supply pipelines, power and communication lines, etc.
Product Parameters
|
Main Technical Parameters of ZT-16G4 |
|
|
Max Torque |
4500N.m |
|
Max Pulling Force |
160KN |
|
Cummins Engine |
97KW/2200rpm |
|
Max Mud Pump Displacement |
180L/min |
|
Walking Speed |
2.5km/h |
|
Weight |
7.5T |
|
Rod Size |
Φ60*2000mm |
|
Rotation Speed |
0-170pm |
|
Max Thrusting Force |
160KN |
|
Pulling Speed |
0-60m/min |
|
Max Mud Pump Pressure |
10Mpa |
|
Entry Angle |
8-20° |
|
Dimension(mm) |
4200*2000*2300 |
|
Reamer Size |
Φ200-Φ500 |
