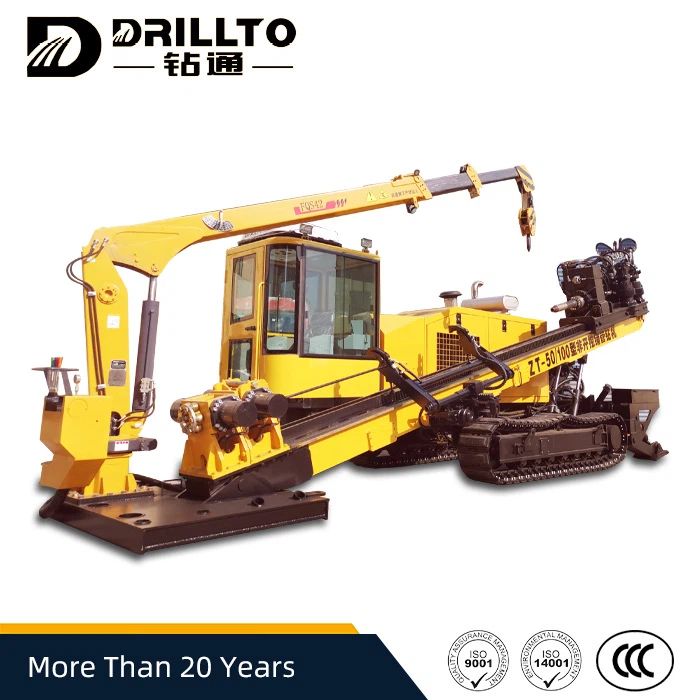

Horizontal Directional Machine

ZT-50/100
This Horizontal Directional Machine is a high-torque drilling rig. The hydraulic system and power system of the drilling rig are products of well-known brands at home and abroad. The system is energy-saving and efficient, responds quickly, and push-pull increases the acceleration system, which can effectively provide work efficiency.

Send Inquiry
Chat Now

Product Introduction

Drillto Trenchless Co., Ltd is one of the most reliable manufacturers and suppliers of horizontal directional machine in China, featured by quality products and good price. Please rest assured to buy horizontal directional machine for sale here from our factory. Contact us for custom service.

Introduction
This Horizontal Directional Machine is a high-torque drilling rig. The hydraulic system and power system of the drilling rig are products of well-known brands at home and abroad. The system is energy-saving and efficient, responds quickly, and push-pull increases the acceleration system, which can effectively provide work efficiency.

Product features
1. The rotary motor adopts imported French Poclain motor, which has large torque and high efficiency
2. The main pump adopts the Danfoss variable closed-circuit pump and Danfoss load-sensing pump imported from the United States, with stable performance and high reliability
3. Rotating cab, wide line of sight, convenient for the driver to observe the drilling rig

Main Technical Parameters

Max Torque：	22000N.m	Rotation Speed：	0-180r/min
Max Pulling Force:	500/1000kN	Max Thrusting Force：	500/1000kN
Cummins Engine:	194kW/2200rpm	Pulling Speed：	50m/min
Walking Speed:	2.5-3.25km/h	Entry Angle:	8-20°
Weight:	15500kg	Dimension(mm):	735022302350
Rod Size:	Φ83*3000mm	Reamer Sizes:	Φ300-Φ1000
