Pipe Pusher For HDD
ZT-500
Diesel Engine Power:264kW
Rated Thrust:5000kN
Rated Pressure:25MPa
Propeller Cylinder Stroke:3500mm/5000mm
- Product Introduction
Drillto Trenchless Co., Ltd is one of the most reliable manufacturers and suppliers of pipe pusher for hdd in China, featured by quality products and good price. Please rest assured to buy pipe pusher for hdd for sale here from our factory. Contact us for custom service.

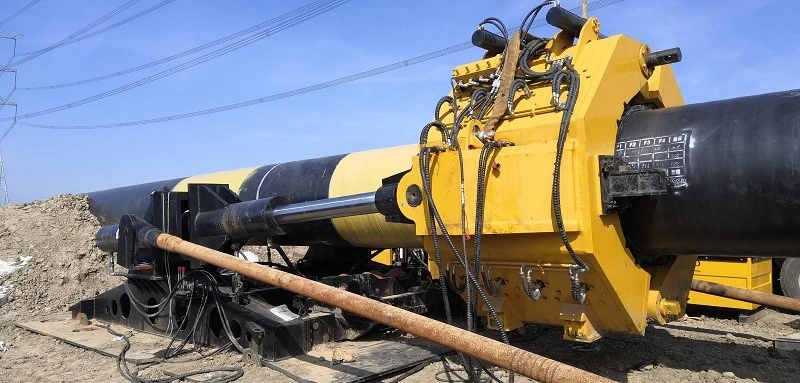

The pipe pusher is mainly composed of a pushing cylinder, a base, and a pipe clamp. After the pipeline is clamped by the pipe clamper, it provides strong thrust or pulling force through the expansion and contraction of the two propulsion cylinders to realize the advance or backward of the pipeline.
The gripper will be transported by a mobile crane or pipelayers as a whole device. Therefore gripper section apply high-strength Q355 steel material in order to reduce weight and improve performance in low temperature
Weight reduction is achieved through topological optimization design.
The opening hydraulic cylinder and the control panel for the clamp opening are located on top and the hydraulic cylinders opening can be remote controlled.
The base of the Pipe Pusher is a device used to drive the front gripper, enabling pushing/pulling operations. It is equipped with two large hydraulic cylinders and a stable base, allowing it to generate a powerful pulling force of up to 750 tons.
Product Parameters
| Serial Number | Item | Parameter | Remarks |
| 1 | Diesel Engine Power | 264kW | QSL8.9-C360 |
| 2 | Rated Thrust | 5000kN | |
| 3 | Rated Pressure | 25MPa | |
| 4 | Propeller Cylinder Stroke | 3500mm/5000mm | |
| 5 | Propeller Speed | ≤2.36m/min | |
| 6 | Operating Angle | 0°-15° | |
| 7 | Small Pipe Diameter | ≥24"(610mm) | |
| 8 | Large Pipe Diameter | ≤56"(1422mm) | |
| 9 | Hydraulic Tank Capacity | 1130L | |
| 10 | Fuel Tank Capacity | 440L | |
| 11 | Power Station Dimensions (L*W*H) | 4200mm*1500mm*2000mm | Transportation status |
| 12 | Base Dimensions (L*W*H) | 4600mm*4100mm*1900mm | Detachable for transport |
| 13 | Router Head Dimensions (L*W*H) | 3170mm*3390mm*2770mm | |
| 14 | Power Station Weight | Approximately 5 tons | |
| 15 | Base Weight | Approximately 20 tons | |
| 16 | Router Head Weight | Approximately 20 tons | |
| 17 | Ambient Temperature | -20℃-45C |
