horizontal directional spiral drilling rig
ZTSPZ
The ZTSPZ series horizontal directional spiral drilling rig can achieve synchronous drilling and pipe jacking, with high construction accuracy and no settlement in the construction area. There are three models:ZTSPZ-600A,ZTSPZ-800A, and ZTSPZ-1000A; The host is frame type, and the power head and feeding mechanism are installed on the rack guide rail.
- Product Introduction
Drillto Trenchless Co., Ltd is one of the most reliable manufacturers and suppliers of horizontal directional spiral drilling rig in China, featured by quality products and good price. Please rest assured to buy horizontal directional spiral drilling rig for sale here from our factory. Contact us for custom service.
The ZTSPZ series horizontal directional spiral drilling rig can achieve synchronous drilling and pipe jacking, with high construction accuracy and no settlement in the construction area. There are three models:ZTSPZ-600A,ZTSPZ-800A, and ZTSPZ-1000A; The host is frame type, and the power head and feeding mechanism are installed on the rack guide rail. The power head adopts an integral enclosed gearbox with high torque; The feeding mechanism adopts hydraulic cylinder propulsion and retraction, which is simple and reliable; Drilling tools are divided into directional drill rods and spiral drill rods; The guiding instrument is LED laser guided, with high accuracy and fast feedback speed.
Work diagram
ZTSPZ-600A PRODUCT INTRODUCTION
| Main technical parameters of ZTSPZ-600A | |||
| Diesel Engine Power | 153kW | Axial Height | 655mm |
| Max. Torque | 22000N.m | Max. Drill Diameter | 710mm |
| Spindle Speed | 0-35-70rpm | Basic Frame(L*W*H) | 2300*1700*1080mm |
| Operating Pressure | 31MPa | Power Size(L*W*H) | 2350*1980*1740mm |
| Max.Thrust Force | 1100kN | Weight | 3.7T |
| Stroke Unit | 400mm | Weight | 3.97T |
ZTSPZ-800A PRODUCT INTRODUCTION

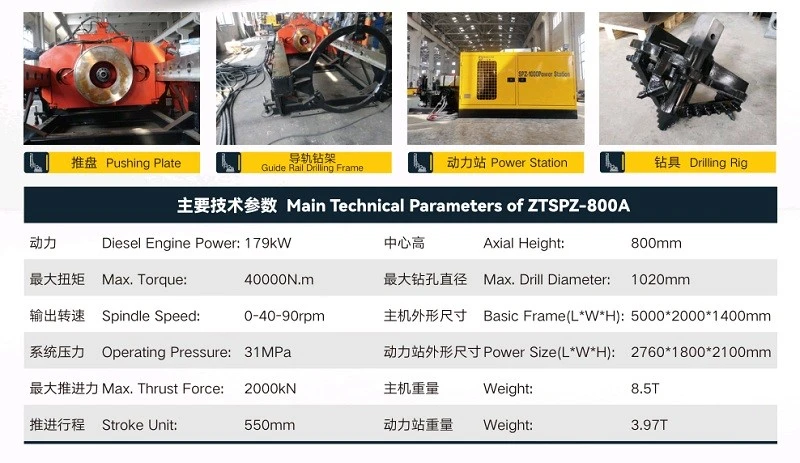

| Main technical parameters of ZTSPZ-800A | |||
| Diesel Engine Power | 179kW | Axial Height | 800mm |
| Max. Torque | 40000N.m | Max. Drill Diameter | 1020mm |
| Spindle Speed | 0-40-90rpm | Basic Frame(L*W*H) | 5000*2000*1400mm |
| Operating Pressure | 31MPa | Power Size(L*W*H) | 2760*1800*2100mm |
| Max.Thrust Force | 2000kN | Weight | 8.5T |
| Stroke Unit | 550mm | Weight | 3.97T |
ZTSPZ-1000A PRODUCT INTRODUCTION
| Main technical parameters of ZTSPZ-1000A | |||
| Diesel Engine Power | 194kW | Axial Height | 1000mm |
| Max. Torque | 60000N.m | Max. Drill Diameter | 1450mm |
| Spindle Speed | 0-30-80rpm | Basic Frame(L*W*H) | 6100*2200*1600mm |
| Operating Pressure | 31MPa | Power Size(L*W*H) | 2760*1800*2100mm |
| Max. Thrust Force | 3000kN | Weight | 9.3T |
| Stroke Unit | 650mm | Weight | 3.97T |
