Thin Wall Drill Rod
Since 2004, Drilling has completed the production and sales of the entire line from drilling rigs to drill pipes. The Thin Wall Drill Rod produced by our company is made of high-quality raw materials, and is heat treated as a whole. The crystal structure is uniform, and the surface of the thread is hardened. Stable, with long lifespan and low risk proven by practice.
- Product Introduction
Drillto Trenchless Co., Ltd is one of the most reliable manufacturers and suppliers of thin wall drill rod in China, featured by quality products and good price. Please rest assured to buy thin wall drill rod for sale here from our factory. Contact us for custom service.
Introduction
Since 2004, Drilling has completed the production and sales of the entire line from drilling rigs to drill pipes. The Thin Wall Drill Rod produced by our company is made of high-quality raw materials, and is heat treated as a whole. The crystal structure is uniform, and the surface of the thread is hardened. Stable, with long lifespan and low risk proven by practice.
Technical data
Specification | Button | Outer diameter of central pliers (mm ) | Clamp space (mm) | Outside diameter of rod (mm) | Wall thickness (mm) | Weight | Rated torque | Rated tension | Minimum curvature radius (m) | |
50 | 2" | D16 | Φ57.3±0.5 | 180 | Φ50 | 6.5 | 17.4 (2m) | 4150 | 430 | 37.5 |
50 | 2" | Casa | Φ57.3±0.5 | 180 | Φ50 | 6.5 | 4150 | 430 | 37.5 | |
50 | 2" | Budweiser buckle | Φ57.3±0.5 | 180 | Φ50 | 6.5 | 4150 | 430 | 37.5 | |
60 | 2 3/8" | Case | Φ67.3±0.5 | Pin180,180 | Φ50 | 7.5 | 29.4 (2.5m) | 7200 | 610 | 46 |
60 | 2 3/8" | D24 | Φ67.3±0.5 | Pin180,180 | Φ60 | 7.5 | 7200 | 610 | 46 | |
60 | 2 3/8" | 2720 | Φ74±0.5 | 160 | Φ60 | 75 | 7200 | 610 | 46 | |
60 | 2 3/8" | 1720A | Φ67.3±0.5 | 180 | Φ60 | 7 5 | 7200 | 610 | 46 | |
60 | 2 3/8" | 1720B | Φ67.3±0.5 | 180 | Φ60 | 7.5 | 7200 | 610 | 46 | |
73 | 2 7/8* | NC23. BGNC23 | Φ80±0.5 | 180 | Φ73 | 8 | 46 (3m) | 12000 | 840 | 62 |
73 | 2 7/8" | NC23 | Φ80±0.5 | 180 | Φ73 | 10 | 13500 | 950 | 70 | |
73 | 2 7/8" | D50 | Φ81±0.5 | 180 | Φ73 | 10 | 53.3 (3m) | 13500 | 950 | 70 |
76 | 3" | D50 | Φ83.5±0.5 | 180 | Φ76 | 10 | 56.3 (3m) | 16000 | 1080 | 75 |
83 | 3 1/4" | D80 | Φ92.5±0.5 | 200 | Φ83 | 9 | 60.5 (3m) | 18500 | 1100 | 80 |
83 | 3 1/4" | NC26 | Φ92.5±0.5 | 200 | Φ83 | 9 | 18500 | 1100 | 80 | |
89 | 3 1/2" | NC26,Case | Φ92.5±0.5 | 220 | Φ89 | 10 | 58.7 (3m) | 21500 | 1300 | 100 |
89 | 3 1/2" | D80 | Φ92.5±0.5 | Pin230,205 | Φ89 | 96 (4.5m) | 21500 | 1300 | 100 | |
89 | 3 1/2" | NC31 | Φ105 | Pin276,254 | Φ89 | 10 | 101 (4.5m) | 21500 | 1300 | 100 |

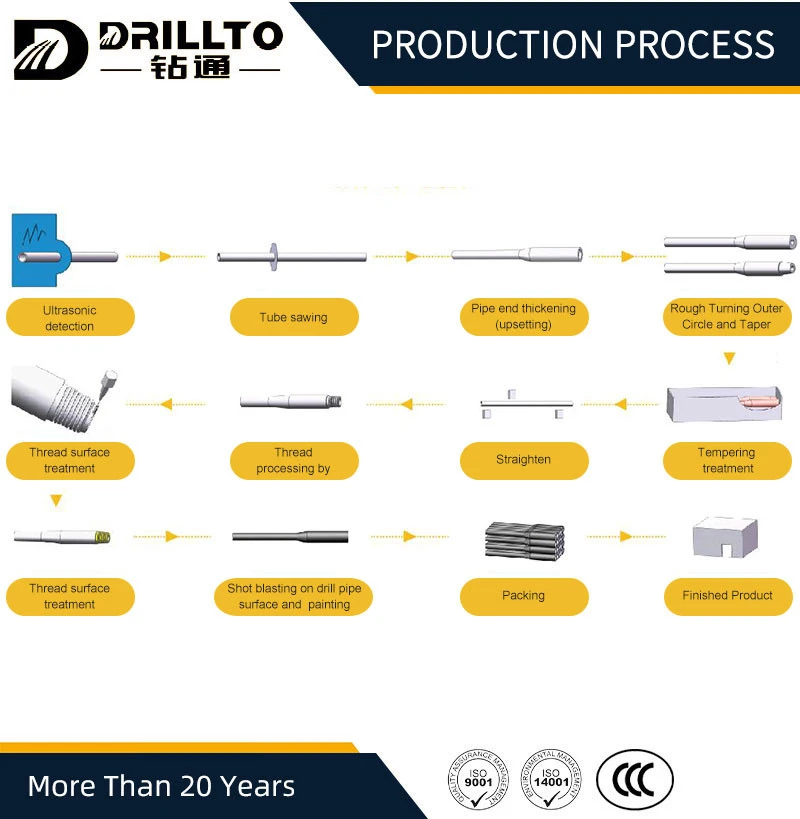

Production process
